Index: ZM-HCSLRALU09-3DBEO
GTV SILENTO PRO overlay hinge, alu frame, soft-close, prow H=0, 3D, polybag, clip-on, non-euro
| Hinge type | Applied |
|---|---|
| Material | STEEL |
| Colour | nickel |
| Finish | nickel, ZnAl |
| Integrated mechanism | Silent closing |
| How to connect the arm to the chain | Clip-on |
| Guide shape | cross |
| 3D adjustment | yes |
| Front mounting | for aluminium frame |
| Kit Contents | 1 pc hinge, 1 pc Guide |
| Individual packaging | yes |
| Action | double |
| Eccentric height adjustment | yes |
| Eccentric depth adjustment | yes |
| Screws included | yes |
| Producer | GTV Poland S.A., ul. Przejazdowa 21, 05-800 Pruszków, Poland, info@gtv.com.pl +48 22 444 75 00 |
Product description

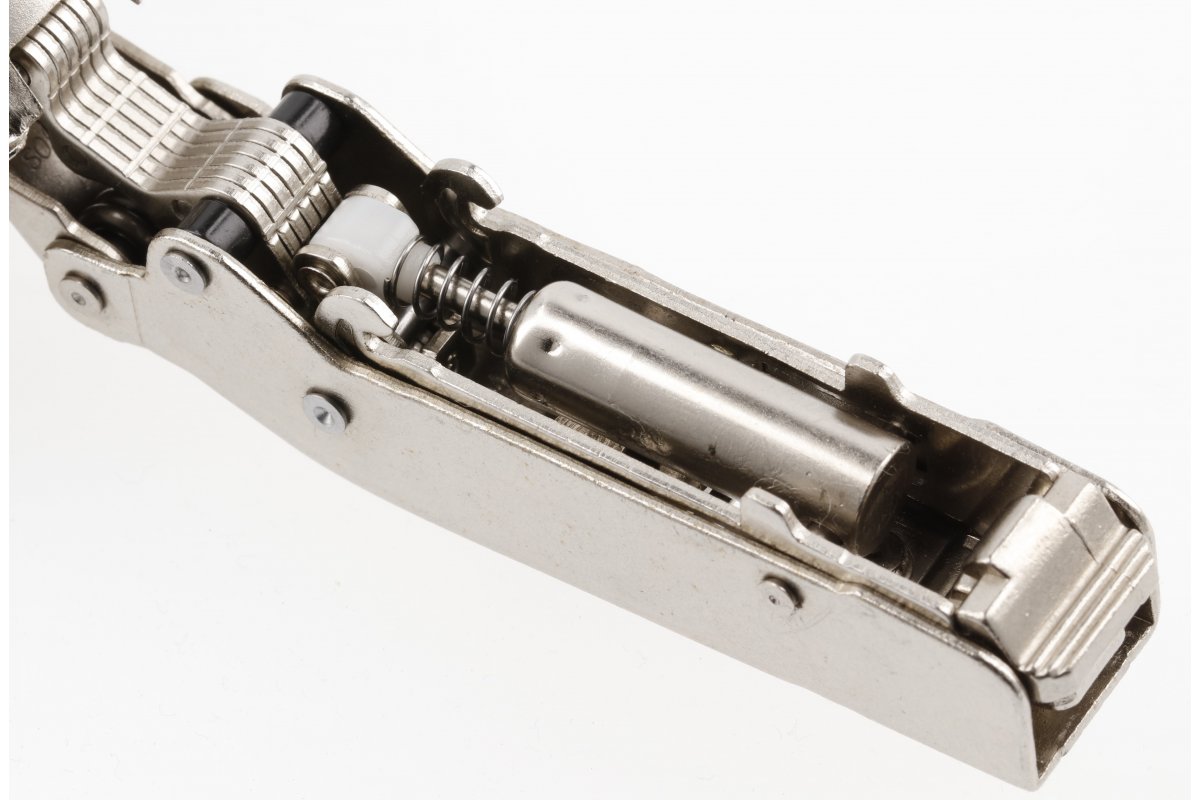

The hinge attached to aluminium frames from the SilentoPRO family is characterized by an extraordinary durability of 80,000 cycles, which is confirmed by the SGS certificate. The high-quality soft-close function ensures smooth and safe operation and is activated with minimal opening of the front. The product is distinguished by the eccentric depth adjustment, integrated in the hinge arm, and the CLIP-ON chain mounting, which makes installation easier. This is complemented by a two-stage deceleration mechanism that protects adjacent furniture and the wall. An eccentrically adjustable chain is included, which, in combination with the depth adjustment, makes adjustment much easier.
· applied to aluminium frames;
· Soft-close
· two-stage operation;
· opening angle 102 degrees
· clip-on chain;
· chain with eccentric adjustment;
· three-dimensional adjustment;
· eccentric depth and height adjustment;
· certified durability of 80,000 cycles;
· Eccentric height adjustable chain included;
· easy installation thanks to the universal drilling template ZM-TEMPLATE-ZA
