Index: PB-KW-KPL450B
SQUARE ModernBox®; 450 medium; 40kg
Length [mm] | 450 |
---|---|
Side height [mm] | 83 |
Side height with rail [mm] | 146 |
Extension | full |
Functions | Silent closing, Vertical and horizontal adjustment |
Material | STEEL |
Colour | Gray |
Finish | lacquer |
Load [kg] | 40 |
Front mounting | for screws |
Front tilt adjustment | yes |
Tested durability | 60000 cycles |

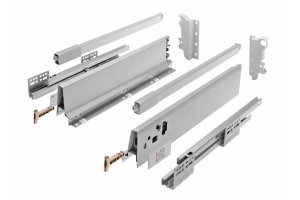

Kit Contents | 2 pcs. guide (L + P), 2 pcs. drawer side (L + P), 2 pcs. rear wall connector (L + P), 2 pcs. Front connector, 2 pcs. Cap, 2 pcs. Railing |
Screws included | yes |
Drawer type | Universal |
Declaration of Conformity | yes |
Individual packaging | yes |
Additional information | medium drawer set “B” |
Product description

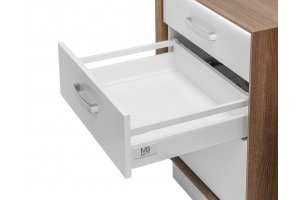

The Modern Box Square drawer is certified for 60,000 cycles. Its maximum load is up to 40 kg, and full extension occurs, in any length from 250 to 550 mm. In the drawer there are 3 height variants (83, 146 and 210 mm), and the comfort of work is ensured by the mechanism of silent closing. A solution that improves the work culture is also the synchronization of the driving path of the guides. Ease of installation is ensured by vertical and horizontal adjustment in the degree of 2 mm, and aesthetics are guaranteed by the end caps of the adjustment holes. The drawer fits a whole range of space organization systems, cutlery inserts, mats and waste sorters.
- silent closing – the mechanism does not allow the drawer to be closed loudly, it is quietly closed;
- load up to 40 kg – you can store food supplies in them – sugar, flour, rice, as well as large-size equipment or heavy ceramics;
- proven, certified product durability for 60,000 cycles;
- full extension in lengths from 250-550 mm will allow the drawer to be completely extended to the length of the entire slide, this is extremely useful for shallow drawers, where access to the back part is difficult;
- 3 height variants (83, 146, 210 mm) for universal drawers for use with mortise and overlapped front;
- synchronization of the driving path of the guides ensures the highest quality of work;
- wide ranges of vertical and horizontal adjustment ± 2mm;
- adjustment of the front inclination using a railing in medium and high drawers;
- adjustment from the outside of the drawer;
- the possibility of using an internal front and additional railings;
- easy installation thanks to the universal drilling template: PB-TEMPLATE-AXIS-MB, PB-D-DRILLJIG-SAMPLE;
- adjustment hole caps included;
- a diverse range of solutions for the organization of the internal space of the drawer (transverse rails, transverse strips, compartments), inserts for CUSTOMI or AXISPACE cutlery and binders for waste;
- the possibility of using an internal front, additional railings or perforated sides.
