Index: PB-D-KPL300A

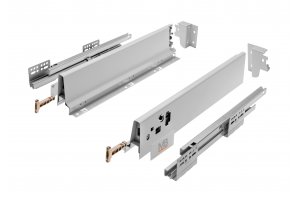

ModernBox® L-300 KPL. – low
| Length [mm] | 365 |
|---|---|
| Side height [mm] | 83 |
| Extension | full |
| Functions | Silent closing, Vertical and horizontal adjustment |
| Material | STEEL |
| Colour | Gray |
| Finish | lacquer |
| Load [kg] | 40 |
| Front mounting | for screws |
| Front tilt adjustment | no |
| Tested durability | 60000 cycles |
| Kit Contents | 2 pcs. guide (L + P), 2 pcs. drawer side (L + P), 2 pcs. rear wall connector (L + P), 2 pcs. Front connector, 2 pcs. Cap |
| Screws included | yes |
| Drawer type | Universal |
| Declaration of Conformity | yes |
| Individual packaging | yes |
| Additional information | low drawer set “A” |
| Producer | GTV Poland S.A., ul. Przejazdowa 21, 05-800 Pruszków, Poland, info@gtv.com.pl +48 22 444 75 00 |
Product description
The Modern Box has a high durability, certified for 60,000 cycles (SGS). It provides a load of up to 40 kg and a full extension in lengths between 250 and 550 mm. It comes in 4 height variants (68, 83, 146, 210 mm) for universal drawers, both with a mortise and an overlapping front. High comfort of the product is ensured by quiet closing and synchronization of the slide path. The drawer fits a whole range of space organization systems, cutlery inserts, mats and waste sorters.
- silent closing – the mechanism does not allow the drawer to be closed loudly, it is quietly closed;
- load up to 40 kg – you can store food supplies in them – sugar, flour, rice, as well as large-size equipment or heavy ceramics;
- proven, certified product durability for 60,000 cycles;
- full extension in lengths from 250-550 mm will allow the drawer to be completely extended to the length of the entire slide, this is extremely useful for shallow drawers, where access to the back part is difficult;
- 4 height variants (68, 83, 146, 210 mm) for universal drawers for use with mortise or overlapping front;
- synchronization of the driving path of the guides ensures the highest quality of work;
- wide ranges of vertical and horizontal adjustment ± 2mm;
- adjustment of the front inclination using a railing in medium and high drawers;
- convenient adjustment from the outside of the drawer;
- the possibility of using an internal front, additional railings and perforated sides;
- easy installation thanks to the universal drilling template: PB-TEMPLATE-AXIS-MB, PB-D-DRILLJIG-SAMPLE;
- a diverse range of solutions for the organization of the internal space of the drawer: transverse rails, transverse strips, compartments, CUSTOMI cutlery inserts, waste binders, AXISPACE anti-slip mats .
