Index: PB-AXISPRO-P2O-KPL69-450-60
AXISPRO push to open oven drawer 69mm 450mm anthracite
| Length [mm] | 450 |
|---|---|
| Extension | full |
| Material | STEEL |
| Finish | lacquer |
| Load [kg] | 40 |
| Front mounting | for screws |
| Functions | Vertical and horizontal adjustment, Friendly |
| Front tilt adjustment | yes |
| Tested durability | 60000 cycles |
| Kit Contents | 2 pcs. guide (L + P), 2 pcs. drawer side (L + P), 2 pcs. rear wall connector (L + P), 2 pcs. Front connector, 2 pcs. Cap |
| Screws included | yes |
| Drawer type | Universal |
| Declaration of Conformity | yes |
| Individual packaging | yes |
| Additional information | extra low drawer set |
| Function | push to open |
| Colour | Pantone 424C |
| Producer | GTV Poland S.A., ul. Przejazdowa 21, 05-800 Pruszków, Poland, info@gtv.com.pl +48 22 444 75 00 |
Product description

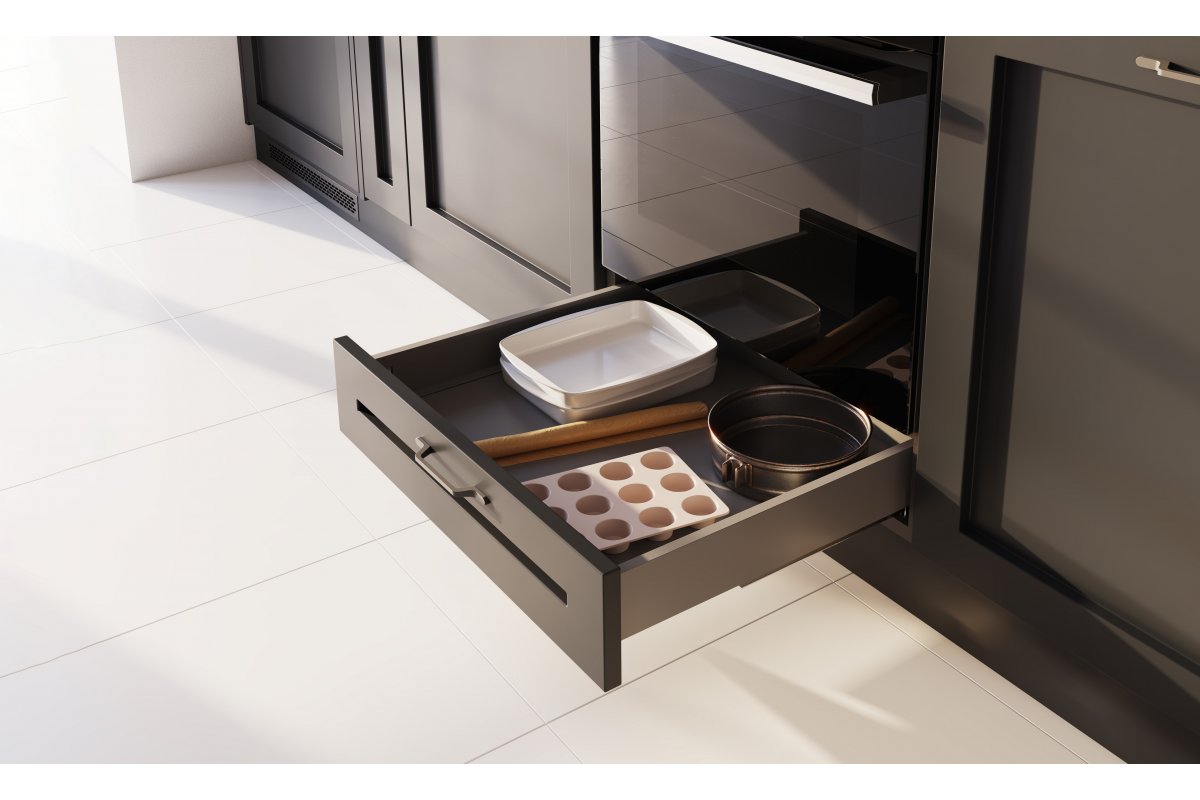

AXIS PRO systems are modern solutions that will work in any type of room. It is a low drawer system designed for installation as an oven cabinet in the kitchen (the minimum height in the body for mounting the drawer is 100 mm).

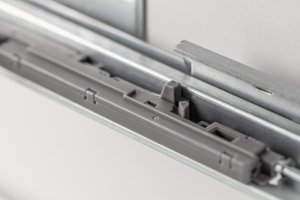

The full extension included in the slides in combination with the push to open mechanism guarantees easy opening and gentle closing of the drawer. The maximum load capacity of this product allows for a load not exceeding 40 kg, while maintaining the smooth operation of the system.
-
the
- minimum height in the body for mounting the drawer is 100 mm;
- full extension;
- push to open;

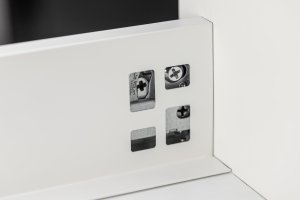

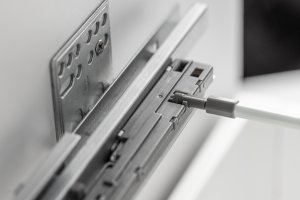

- front adjustment in 2 planes: (vertical and horizontal);
- load: up to 40 kg;
- thin drawer side: 14 mm;
- Guide length: 450 mm;
- Backwall height: 69 mm;
- recommended bottom thickness: 16 mm;
- colour: anthracite.
