Index: PB-AXISPRO-P2O-K69-450-60

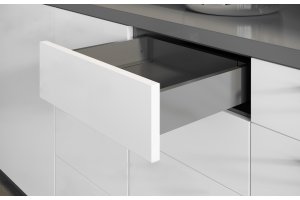

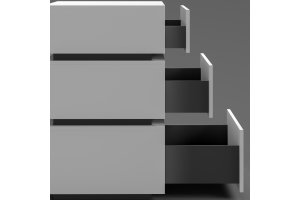

GTV AXISPRO drawer, H=68 mm, L=450 mm, push to open, full extension, anthracite

Product specifications
Length [mm]450
Extensionfull
MaterialSTEEL
Finishlacquer
Load [kg]40
Front mountingfor screws
FunctionsVertical and horizontal adjustment, Friendly
Front tilt adjustmentyes
Tested durability60000 cycles
Kit Contents2 pcs. guide (L + P), 2 pcs. drawer side (L + P), 2 pcs. rear wall connector (L + P), 2 pcs. Front connector, 2 pcs. Cap
Screws includedyes
Drawer typeUniversal
Declaration of Conformityyes
Individual packagingyes
Additional informationextra low drawer set
Functionpush to open
ColourPantone 424C

Product description

    the

  • minimum height in the body for mounting the drawer is 100 mm;
  • full extension;
  • push to open;
  • front adjustment in 2 planes: (vertical and horizontal);
  • load: up to 40 kg;
  • thin drawer side: 14 mm;
  • Guide length: 450 mm;
  • Backwall height: 69 mm;
  • recommended bottom thickness: 16 mm;
  • colour: anthracite.
