Index: PB-AXISPRO-KPL600D2

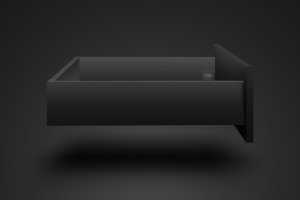

AXIS PRO GTV Drawer, H=200 mm, L=600 mm, Soft-close, Full Extension, Black (C)
| Extension | full |
|---|---|
| Functions | Silent closing, Vertical and horizontal adjustment, Friendly |
| Material | STEEL |
| Colour | anthracite |
| Finish | lacquer |
| Load [kg] | 40 |
| Front mounting | for screws |
| Front tilt adjustment | yes |
| Tested durability | 60000 cycles |
| Kit Contents | 2 pcs. guide (L + P), 2 pcs. drawer side (L + P), 2 pcs. rear wall connector (L + P), 2 pcs. Front connector, 2 pcs. Cap |
| Screws included | yes |
| Drawer type | Universal |
| Declaration of Conformity | yes |
| Individual packaging | yes |
| Additional information | very high drawer set “D” |
| Length [mm] | 600 |
Product description
AXIS PRO Extra High Drawer has a long service life of 60,000 cycles. It provides full extension in lengths from 250 to 600 mm, and the soft-close mechanism guarantees quiet operation and gentle closing of the drawer. With 5 height variants, you can fit it perfectly into your kitchen, and the drawer side, which is only 14 mm wide, allows you to make the most of the inner space of the furniture. The load of the drawer allows you to place up to 40 kg of various products in it. Installation is easy thanks to the convenient adjustment on the inside, tilt adjustment and horizontal adjustment in the range of +- 2 mm. The drawer is compatible with a whole range of space organization systems, cutlery inserts, mats and waste sorters.
- soft-close – the mechanism does not allow the drawer to close loudly, it is quietly closed;
- load up to 40 kg – they can be used to store food supplies – sugar, flour, rice, as well as large-size equipment or heavy ceramics;
- Proven, certified product durability of 60,000 cycles
- full extension in lengths from 250-600 mm will allow the drawer to be fully extended to the length of the entire slide, this is extremely useful for shallow drawers where access to the back is difficult;
- synchronization of guide segments ensures the highest smoothness;
- 5 height variants (69, 86, 120, 168, 200 mm) for multipurpose drawers for use with recessed or overlay fronts;
- the simple form of the side with a width of only 14 mm allows for maximum use of the internal space of the drawer;
- convenient adjustment from the inside of the drawer;
- wide ranges of vertical and horizontal adjustment ± 2mm;
- it has a tilt adjustment and additional adjustment when using a railing (it is recommended to use an additional rail for very high fronts);
- the rear wall connectors allow it to be easily mounted to the drawer body;
- possibility of using an internal front and additional railings;
- Simplified installation with universal drilling template: PB-TEMPLATE-AXIS-MB;
- Adjustment hole plugs included;
- in terms of organizing the internal space of the drawer, the offer includes: CUSTOMI cutlery inserts, waste binders and AXISPACE anti-slip mats.
