Index: PA-GLAXMIC-AL

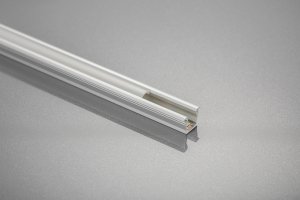

Aluminium profile LED micro- recessed GLAX silver L=2 m
| Material | aluminium/cast iron |
|---|---|
| Application | Kitchen, Living Room, Bedroom, Dressing Room, Shop |
| Colour | silver |
| Length [m] | 2 |
| Instruction of installation | recessed |
| Producer | GTV Poland S.A., ul. Przejazdowa 21, 05-800 Pruszków, Poland, info@gtv.com.pl +48 22 444 75 00 |
Product description
The current trend is to move away from light points in favor of linear lighting, based on LED strips.
During operation, the belt generates heat that must be dissipated from it. Otherwise, the tape may wear out prematurely. Special aluminium GLAX profiles are used to dissipate heat from the belt. In order to effectively dissipate heat from the tape to the aluminum profile, the tape must adhere to it with its entire surface. Therefore, before pasting the LED strip into the GLAX profile, it is necessary to degrease its center.
The mortise profile is used wherever we want to obtain a smooth surface, so that the profile does not collide, e.g. with a drawer or drawer front.
The micro recessed profile allows you to get an even line of light without visible light points even when using a tape with a not very dense arrangement of LEDs.
For proper assembly, milling with a width of 12 mm and a depth of at least 10.5 mm should be performed. Special teeth will press against the edge of the plate. The ends of the profile are closed with the help of aesthetic plugs.
Do not use mounting adhesives or silicones for installation.
- Effectively dissipates the heat generated by the LED strip;
- Dedicated milk casing PA-OSMLGLAXMIC-00N;
- Dedicated end cap PA-ZASGLAXMIC-00;
- The maximum width of the LED strip is 5 mm.
