Index: CR-CR7000-00

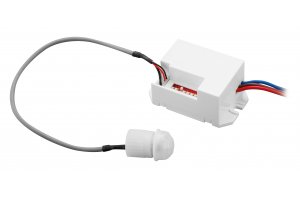

Motion detector CR-7, max 800W, AC220-240V, 50/60Hz, angle 360°, range 6m ± 1,8- 2,5m, IP20, working with LED, surface mounted, white housing
| Material | plastic |
|---|---|
| Colour | white |
| Power supply current | AC |
| Voltage [V] | 220-240 |
| Hertz [Hz] | 50-60 |
| CE certificate | yes |
| EAC certificate | yes |
| Protection class against electric shock | II |
| Type of connector [mm2] | 2,5 |
| Place of installation | wall, ceiling, floor |
| Protection class IP | 20 |
| Maximum permissible load [W] | 800 |
| Max horizontal sensor operation angle [⁰] | 360 |
| Max motion detection range [m] | 6 |
| Functions | LED-compatible |
| Producer | GTV Poland S.A., ul. Przejazdowa 21, 05-800 Pruszków, Poland, info@gtv.com.pl +48 22 444 75 00 |
Product description
CR-7 infrared motion sensor uses the detection of heat radiated by people in the infrared band. Thanks to this, after detecting movement in the detection field, the sensor can turn on the connected receivers, and automatically recognize day and night depending on the user's settings.
Lighting maintenance time is gradually adjustable, and the power consumption in standby mode is only 0.1 W. The maximum permissible load for incandescent sources is 800W, and for LED lighting 200W.
- Automatic day and night recognition: the sensor works during the day and night with the SUN setting (sun – maximum setting) or only in the dark when the ambient light intensity is less than 10 lux with the MOON setting.
- The SENS adjustment allows for adjustment of the sensitivity of the sensor to the workplace, low sensitivity for small rooms, and high sensitivity for large rooms.
- Lighting maintenance time is summed up continuously, which enables the switch-off time to be adjusted to the user’s needs.
- Lighting maintenance adjustment is gradual: 5 seconds, 30 seconds, 1 minute, 3 minutes, 5 minutes and 8 minutes.
- Maximum permissible load for incandescent sources is 800W, and for LED lighting 200W.
