Index: CR-CR3000-00

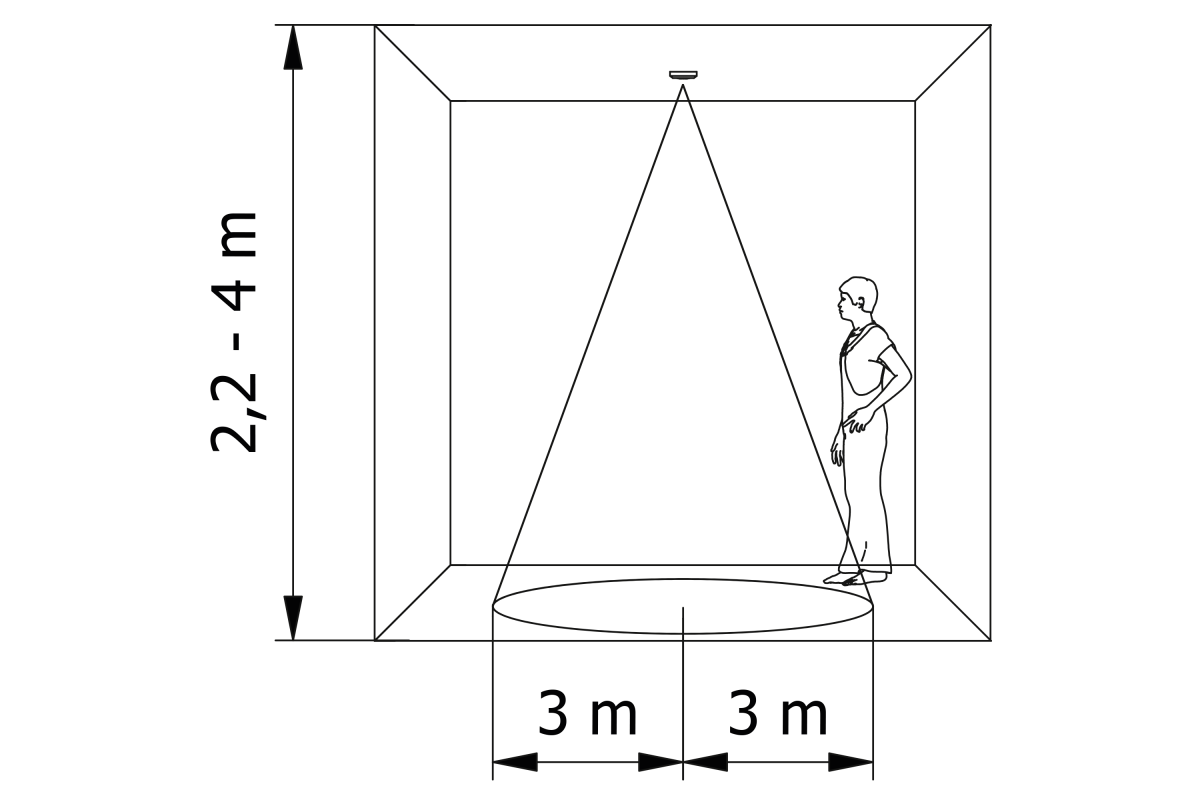

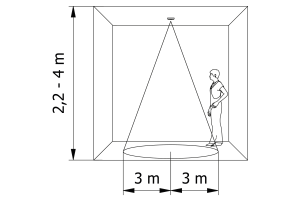

Motion detector CR-3, max 1200W, AC220-240V, 50/60Hz, angle360°, range 6m ± 2,2-4m, IP20, not for LED, surface mounted, white housing
| Material | plastic |
|---|---|
| Colour | white |
| Power supply current | AC |
| Voltage [V] | 220-240 |
| Hertz [Hz] | 50-60 |
| CE certificate | yes |
| EAC certificate | yes |
| Protection class against electric shock | II |
| Type of connector [mm2] | 2,5 |
| Place of installation | wall, ceiling |
| Protection class IP | 20 |
| Maximum permissible load [W] | 1200 |
| Max horizontal sensor operation angle [⁰] | 360 |
| Max motion detection range [m] | 6 |
| Functions | LED-compatible |
Product description
The PIR (infrared) motion sensor is an excellent way to automatically turn on the lighting in the room.
The sensor detects the heat of the human body, and if it is within the detection range of the sensor, the device will work. The sensor can operate in both day and night mode. The device is controlled by two potentiometers located on the side of the housing.
- compatibility – the sensor works with both ordinary and LED light sources;
- maximum load on the sensor 1200W;
- 360° detection range;
- detection distance of tynosi 6 meters;
- 3-year warranty.
