Index: CR-CR21000-00

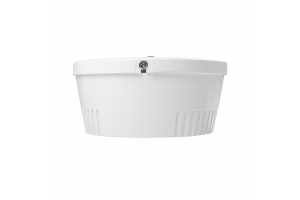

Motion sensor CR-21, max.2000W, AC220-240V, contact angle 360*, range 30m ± 2.2-4m
| Material | plastic |
|---|---|
| Colour | white |
| Power supply current | AC |
| Voltage [V] | 220-240 |
| Hertz [Hz] | 50-60 |
| CE certificate | yes |
| EAC certificate | yes |
| Protection class against electric shock | II |

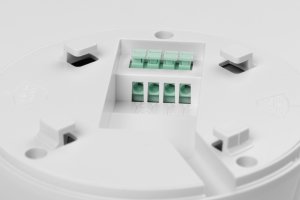

| Type of connector [mm2] | 2,5 |
| Place of installation | wall |
| Protection class IP | 20 |
| Functions | LED-compatible |
| Working temp range [st.C] | -20 to 40 |
| Weight [g] | 800 |
| Maximum permissible load [W] | 2000 |
| Max horizontal sensor operation angle [⁰] | 360 |
| Mounting | surface-mounted |
| Function | UKRsepro Certificate |
Product description
The CR-21 motion sensor is ideal for indoor spaces such as offices, corridors or apartments, where intelligent lighting control is necessary.
The advanced technology allows for motion detection at a range of up to 30 meters. The detection angle is 360 degrees, which ensures effective coverage of the operating area. Recommended mounting height: 2-4 meters.

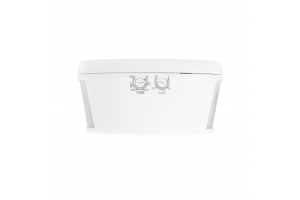

The sensor also offers the ability to adjust the detection sensitivity, daylight sensor and maintenance time, so the user can adjust the operation of the device to individual needs.
The IP20 design ensures that the sensor is dust-proof, but not suitable for outdoor use or in damp rooms. Its maximum load for LED lighting is 1000 W, which makes it compatible with most lighting systems.
- Range & Detection Angle: Detects motion up to 30 meters and at 360 degrees, providing full coverage of the area.
- Adjustable Settings: Customizable detection sensitivity, daylight sensor, and hold-up time.
- Safety: Suitable for dry environments with IP20 sealing; not suitable for outdoor use or damp locations.
