Index: CR-CO2000-00
Motion and CO-2 detector, max 2000W, AC220-240V, 50/60Hz, 360*, range 3-20m, IP65
| Material | plastic |
|---|---|
| Colour | white |
| Power supply current | AC |
| Voltage [V] | 220-240 |
| Hertz [Hz] | 50-60 |
| CE certificate | yes |
| EAC certificate | yes |
| Protection class against electric shock | II |
| Type of connector [mm2] | 2,5 |
| Place of installation | wall, ceiling |
| Protection class IP | 65 |
| Maximum permissible load [W] | 2000 |
| Max horizontal sensor operation angle [⁰] | 360 |
| Max motion detection range [m] | 5-20 |
| Functions | LED-compatible |
Product description
The CO-2 Motion and Presence Sensor is an advanced device that uses PIR technology, which is characterized by exceptional sensitivity, allowing it to recognize even the smallest movements, such as working at a computer. With an IP65 rating, the sensor is dust and water resistant, making it ideal for both indoor and outdoor applications.

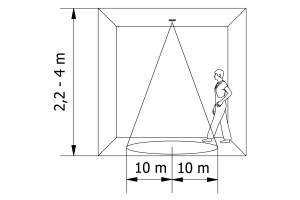

- Recommended installation height: Optimal results are achieved when installed at a height of 2.2-4 meters.

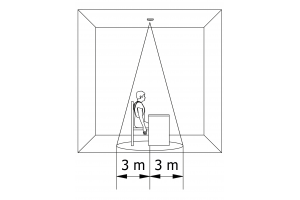

- Detection Range: The effective operating range has a radius of 10 meters, which provides wide coverage of the area. Presence detection, on the other hand, works within a radius of 3 meters.
- Automatic day and night identification: The sensor adjusts its operation according to the ambient light level. The “sun” mode activates the sensor regardless of the lighting conditions, while the “3” mode only activates the sensor at light levels below 3 LUX – ideal for night-time use.
- Adjustable Delay Time: Adjustable delay time to turn off the light from 10 seconds to 30 minutes, allowing flexible lighting management.
