Index: AE-WPDRW-00DIM

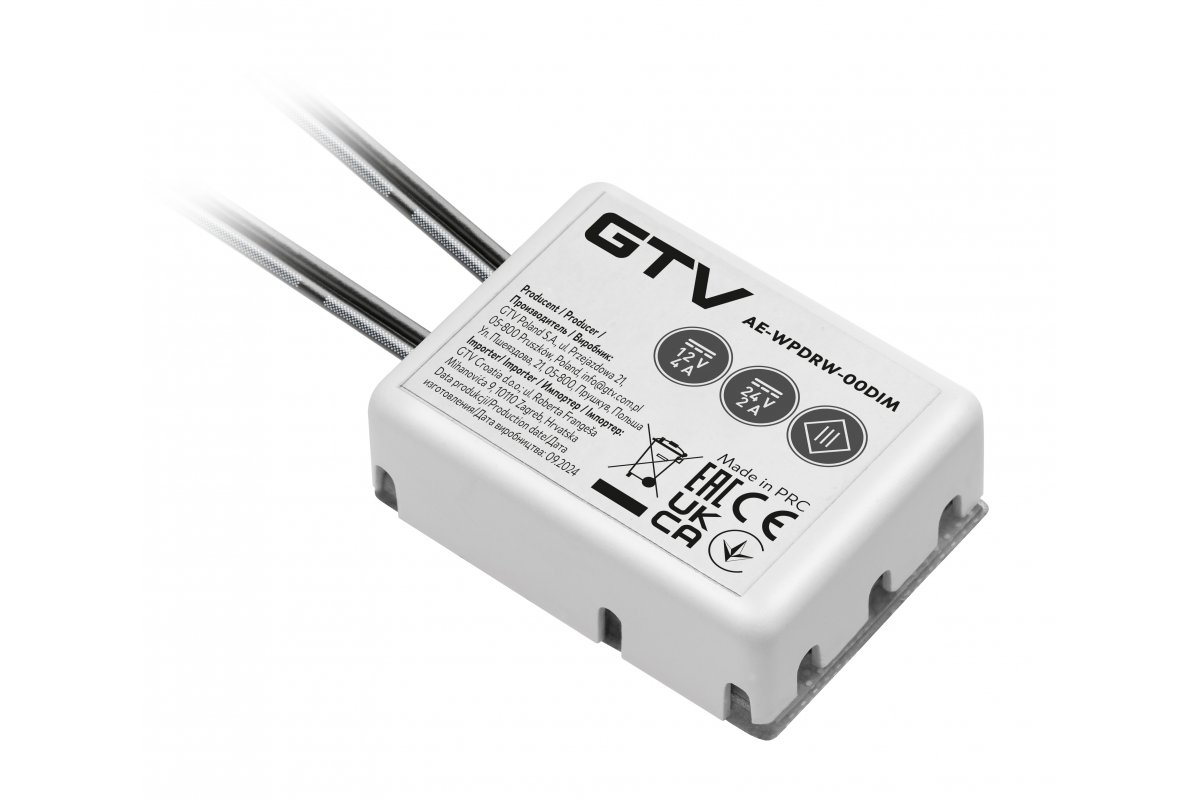

Dimmable undercounter switch for material thicknesses up to 40mm, 12V/24V,36W/50W, wires 500mm
| Material | plastic |
|---|---|
| Power supply current | DC |
| Voltage [V] | 12 |
| Function | Dimmer-dimmer |
| Protection class against electric shock | III |
| Protection class IP | 20 |
| Maximum permissible load [W] | 50 |
| Length of cord with connector [m] | 0,5 |
| Maximum sensor range [cm] | 4 |
| Producer | GTV Poland S.A., ul. Przejazdowa 21, 05-800 Pruszków, Poland, info@gtv.com.pl +48 22 444 75 00 |
Product description
The switch is placed under the worktop with a maximum thickness of 40 mm. Switching on and off consists in touching the worktop at the installation height and dimming occurs by holding your hand in this place for a long time. A very clever solution for all those who like minimalism. The product is sold without a power supply. Once mounted, the sensor is completely invisible.
- maximum thickness of the table top is 40 mm;
- Once mounted, the sensor is completely invisible;
- maximum thickness of the table top is 40 mm;
- the maximum load of the switch is 50W;
- safe voltage supply 12V/24V;
