Index: AE-WBEZDPIR2-20
PIR non-contact switch, 2 sensors, 2m cables, black
| Material | plastic |
|---|---|
| Protection class against electric shock | III |
| Protection class IP | 20 |
| Length of cord with plug [m] | 2 |
| Moc [W] | max 24/48 |
| Power supply [V, Hz] | 12-24, DC |
| Max permissible load [A] | 2 |
| Length of cord with connector [m] | 2x2 |
| Range of motion sensor [mm] | 2000 |
| Length of cable with sensor [m] | 2x2 |
Product description

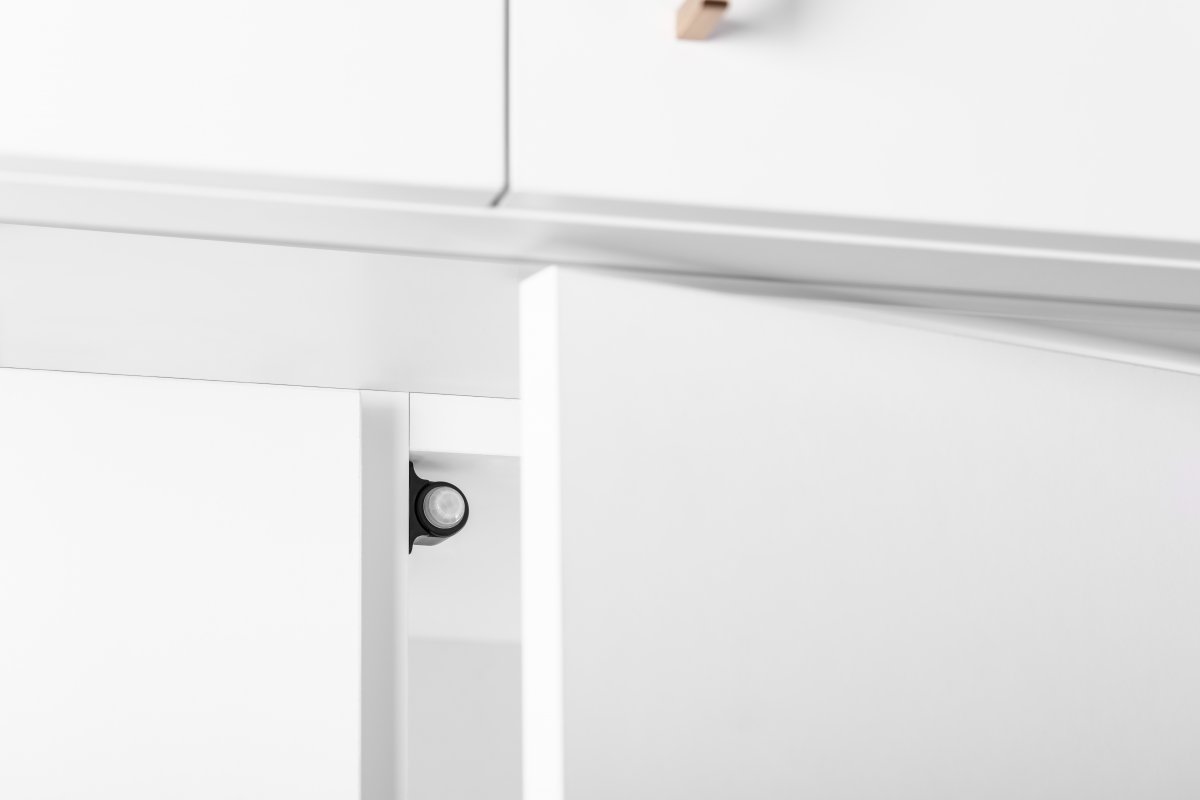

The switch is equipped with two small motion sensors that react to changes of temperature against the environment. Their detection range is approximately 2 meters. Due to their character, they should be installed inside cabinets. After opening, for example, the wardrobe door, the sensor detects the human body warmer than the environment and turns on the light.
The runtime of light after the object leaves „the field of view” of the sensor is about 45 seconds.
If you do not need both sensors, you can easily disconnect one by unfastening the miniAMP connector.
- The light holding time is about 45 seconds;
- Possibility to detach one of the sensors;
- Detection range is 2 meters.
